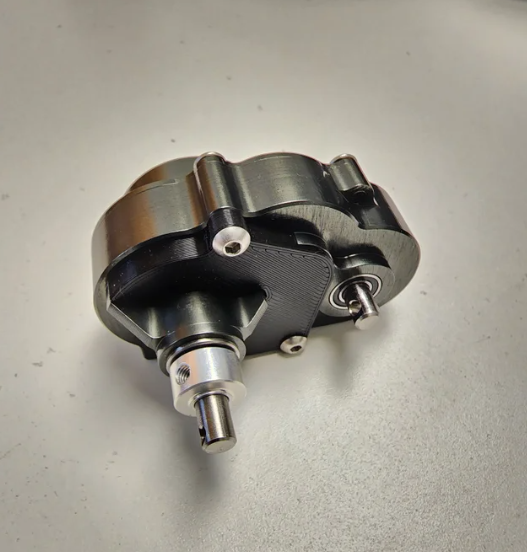

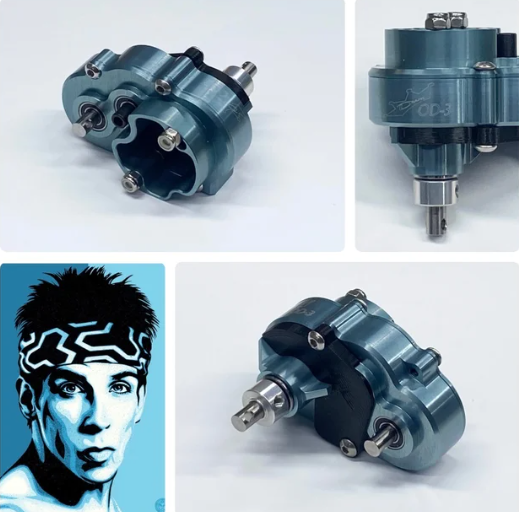

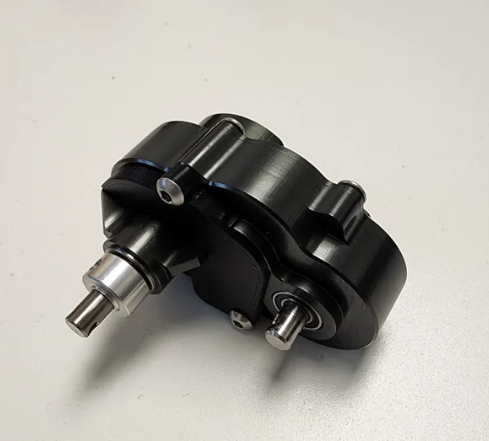

OD-3 Overdrive Transmission for Straight Axles

Dlux Overdrive Transmission:

Extremely compact and lightweight 70.0g / 2.46oz

Dimensions, in mm:(35Lx59Wx36H)

Designed for motor forward mounting.

Mounting is accomplished by two M3 tapped holes, 23.0mm center to center (not angled).

Fully Enclosed.

7075 high strength aluminum case.

Heat treated alloy steel gears.

Grade 5 Titanium output shafts.

3.66:1 gearing, plus 44T spur gear.

Uses 48P pinion gears from 9 to 17 teeth.

Use 12T pinion gear as a starting point for most AR44 applications with overdrive front gears.

18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).

28% overdrive when used with underdrive rear ring and pinion.

38% overdrive when used with underdrive and overdrive ring and pinion.

***Now available in both left- and right-motor versions***

Left-motor has front output on the right side, and rear on the left.

Right-motor has front output on the left side, and rear on the right.

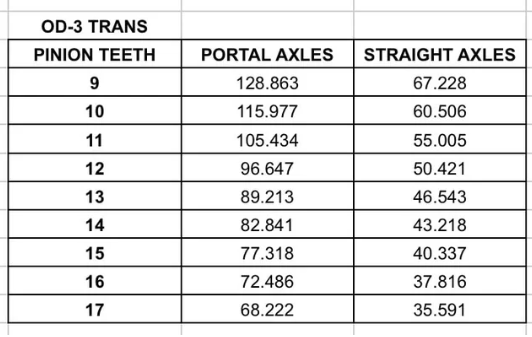

Chart posted in pics, shows possible front axle ratios using stock Axial portal and AR44 straight axle gears
