F10 PORTAL FRONT AXLE SET

The F10 Plastic Molded Portal axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The plastic molded F10 Portal axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle.

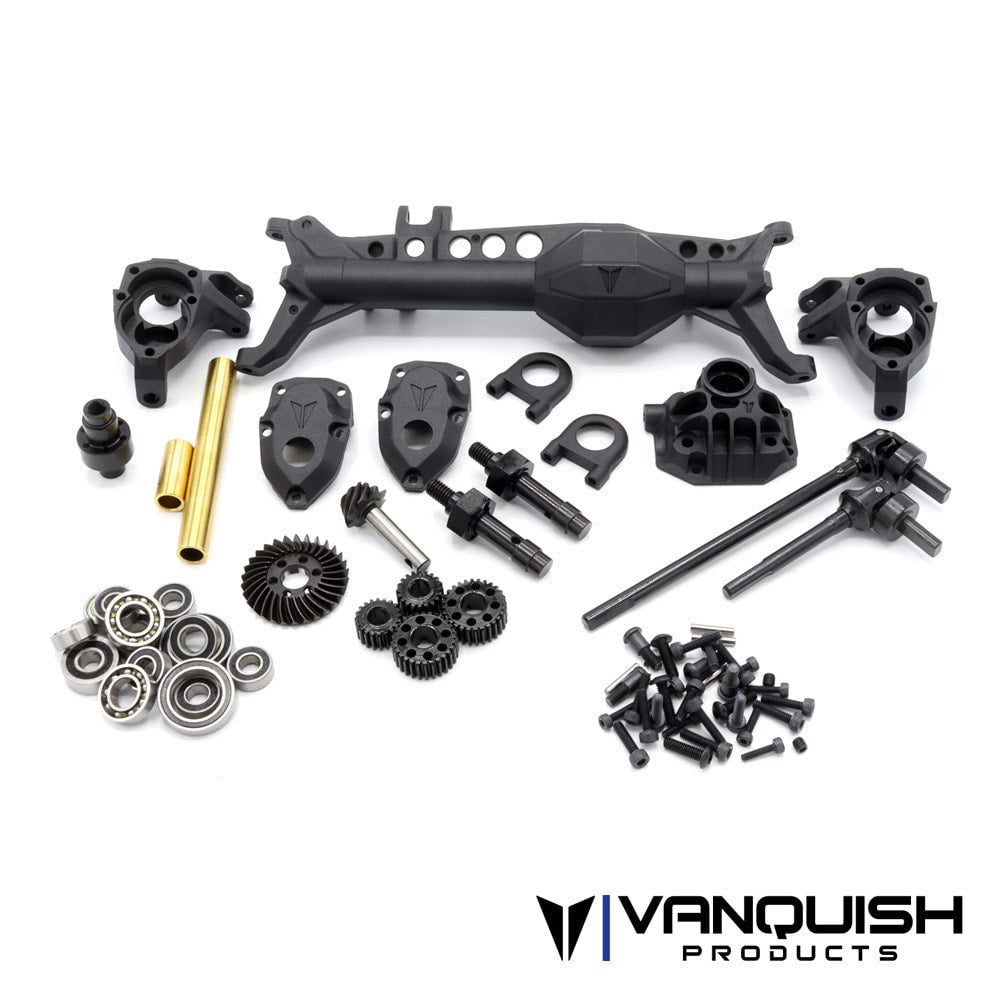

F10 Portal Front Axle Set

Molded Plastic Axle housing

Machined Chromoly Portal Gears (VPS08353)

Universal Style Axle Shafts

49 Degrees of Steering

High Caster reinforced C-Hub

High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)

6-Bolt Ring Gear and Spool

1.4:1 Portal Gear Ratio (VPS08353)

6mm Output shafts with M5 wheel nut

One-Piece Molded Bearing Retainers

Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)

Chromoly universal shafts

Brass tube inserts

Scale removable third member

Note:

M5 wheel nut requires one of the following tools: IRC00142 or VPS08440

To add overdrive in the portal gears, install VPS08354 Standard portal gears in the rear axle

To add overdrive in the ring and pinion, install VPS08331

Compatible with all Vanquish SLW and Incision hubs.

For use with Phoenix, Ultra, Pro, and SCX10II Bent steering tie rod.

Does not include link mounting hardware

Incision .280" width pivot ball compatible

For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
