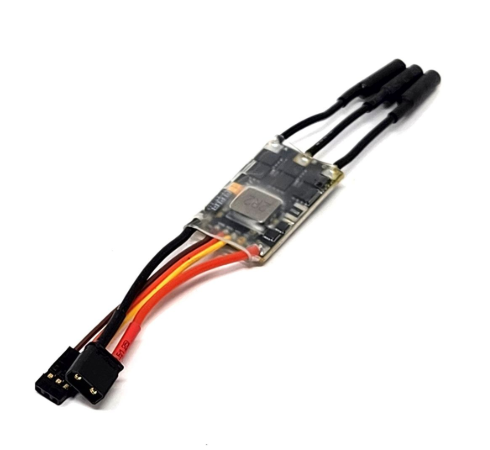

DLUX C60 60A ESC with Adjustable 12A BEC for RC Crawlers

Power your RC crawler with the DLUX C60 ESC, a 60A electronic speed controller with an adjustable 12A BEC and support for 2–6S batteries.

Key features

• XT30 battery connector
• Adjustable 12A BEC with 5.5V, 6.5V, 7.4V, and 8.4V settings for 3-wire servos
• Supports 2–6S batteries
• Over-temperature, over-current, and low-voltage protection
• Conformal-coated for improved water resistance
• Voltage-spike protection for direct-power servos with a TVS diode and 1000uF capacitors
• Compact design with no large capacitors, diodes, or heat sinks protruding from the ESC
• Smooth startup, sine-mode transition, and quiet operation
• Active Duty_Lock drag brake for strong holding power on crawlers
• Supports sensored and sensorless brushless motors, plus brushed motor modes
• Advanced brushed-mode settings, custom startup tones, and LED status signaling
• Light or dark mode in the WiFi-Link app

ESCape32 programming

Configure the ESC across desktop, laptop, tablet, or phone through the ESCape32 WiFi-Link. The 32-bit open-source firmware provides detailed tuning controls without requiring special downloads. WiFi-Link sold separately.
